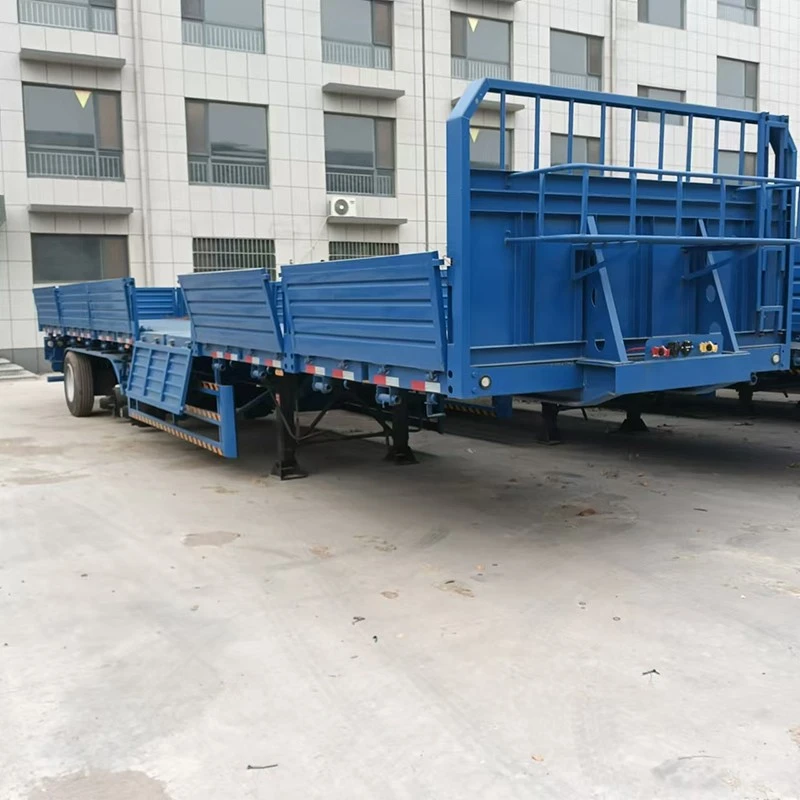

Name: China 3 Axle Sidewall Cargo Semi Trailer Manufacturers Suppliers Factory - Made in China - Huahang
Brand: Huahang
SKU: 287743439

Product Details

With years of experience in producing 3 axle sidewall cargo semi trailer, Jininghuahang can provide a wide range of fenced cargo trailers. Fenced cargo trailers can meet many applications, if you need it, please get our online service about fenced cargo trailers in time. In addition to 3 axle sidewall cargo semi trailer, we can also customize unique fenced cargo trailers for your specific needs.

Parameter of 3 axle sidewall cargo semi trailer

Dimension and Weight
Overall Dimension (Lx W x H) (mm)	1250025002550
Cargo box dimension (Lx W x H) (mm)	12000X2300X600
Tare Weight(KG)	6550
Loading Weight( KG)	50000
Total Weight(KG)	56350
Chassis and Running System
Axle Brand	13Ton, Fuwa brand option one hundred fifty thousand Kilometers no need maintenance
Axle Number	Three
Wheelbase(mm)	7450+1310+1310
Suspension system	Mechanical Leaf Spring Suspension
Leaf spring	90(W)mm13(Thick)mm10 Layer
The material of the Main beam	Q345B carbon steel, The height of the beam is 500 mm, the upper plate is 14 mm, the down plate is 16mm, and the middle plate is 8 mm.
Side beam	Q235 16# channel steel
Platform plate	3mm Diamond plate
Tire	12R22.5, 12 pcs. Taitung brand
Rim	9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose, and connector, no ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve
Traction/King Pin	2" and 3.5" removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear	Zhenhua brand 28ton external two-speed telescopic manual operation 2,500mm behind the kingpin location
Accessories
Toolbox	1pcs, One crank, and one shaft head wrench
Mudguard	Steel mudguard and front mudguard
Spare wheel carriers	2 pcs
bumper	Rear bumper with adjustable height
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp, etc.
	One set of 6-core electric cables protected by PVC conduit on the main frame
Paint	Shot blast at Standard SA 2.5 prior to application of primer, and polyurethane top coat. Total DFT not less than 100um, A layer of anti-rust paint, two-layer finish.Waxed
Packing	Nude, Polish with wax before shipping

About us

JininghuahangTrailer Manufacturing Co., Ltd. was established in 2005, specializing in a variety of semi-trailers, providing high-quality products and the best service. We are also the agent of Sinotruk, tractor trucks, dump trucks, and oil tankers are our main products. We welcome customers from all walks of life to visit us and establish cooperative relations with us.

202508301103021

Packing & Shipping

In order to save on shipping costs, we usually use 3 foldable units for transportation

product-1200-1111

FAQ

1. How do we ensure quality?

Always a pre-production sample before mass production; always a final inspection before shipment.

2. What can you buy from us?

Low flatbed trailer, flatbed trailer, tanker semi-trailer, bulk cement trailer, dump truck, tractor, etc.

3. Why should you buy from us instead of from other suppliers?

We are a professional semi-trailer factory, established in 2005, with 17 years of experience so far. We have exported semi-trailers and trucks to about 60 countries and can provide you with high-quality products at competitive prices.

4. What services can we provide?

Accepted delivery terms: FOB, CFR, CIF, EXW, Express, DAF;

Accepted payment methods: USD, EUR, CNY;

Accepted Payment Methods: Wire Transfer, Letter of Credit, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;

Languages interviewed: English, Chinese, Spanish, Arabic, French.
